Low-Altitude Anti-Drone Counter System Defense Vehicle
√ Mobile Control
Allows the vehicle to be deployed and controlled in motion, ensuring adaptability to dynamic scenarios.
√ Highly Integrated
The integration of radar, radio detection, communication jamming, navigation spoofing, and laser deterrence enhances overall system performance.
√ Robust & Durable
The system, built on the DongFeng M-Hero vehicle, exhibits exceptional robustness and durability in challenging conditions.
√ Intelligent assurance
The intelligent control system provides operators with real-time monitoring and control capabilities, ensuring optimal system performance.
√ Super-charged Countermeasure
Comprehensive countermeasure capabilities against UAV threats, covering detection, jamming, and deterrence.
√ Multi-environmental Adaptability
The system is designed to operate effectively in various environments, offering adaptability to different operational scenarios.
Description
Description

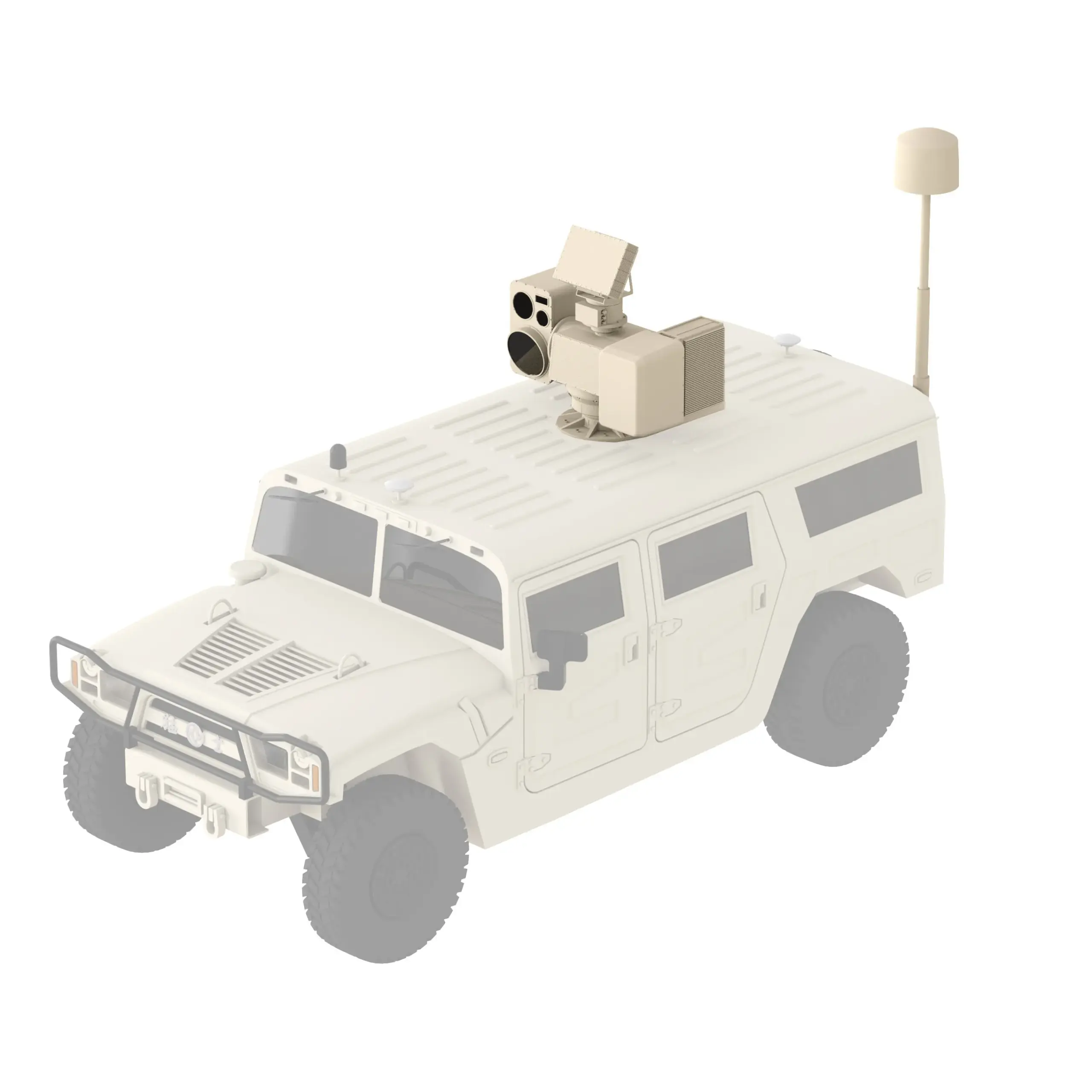

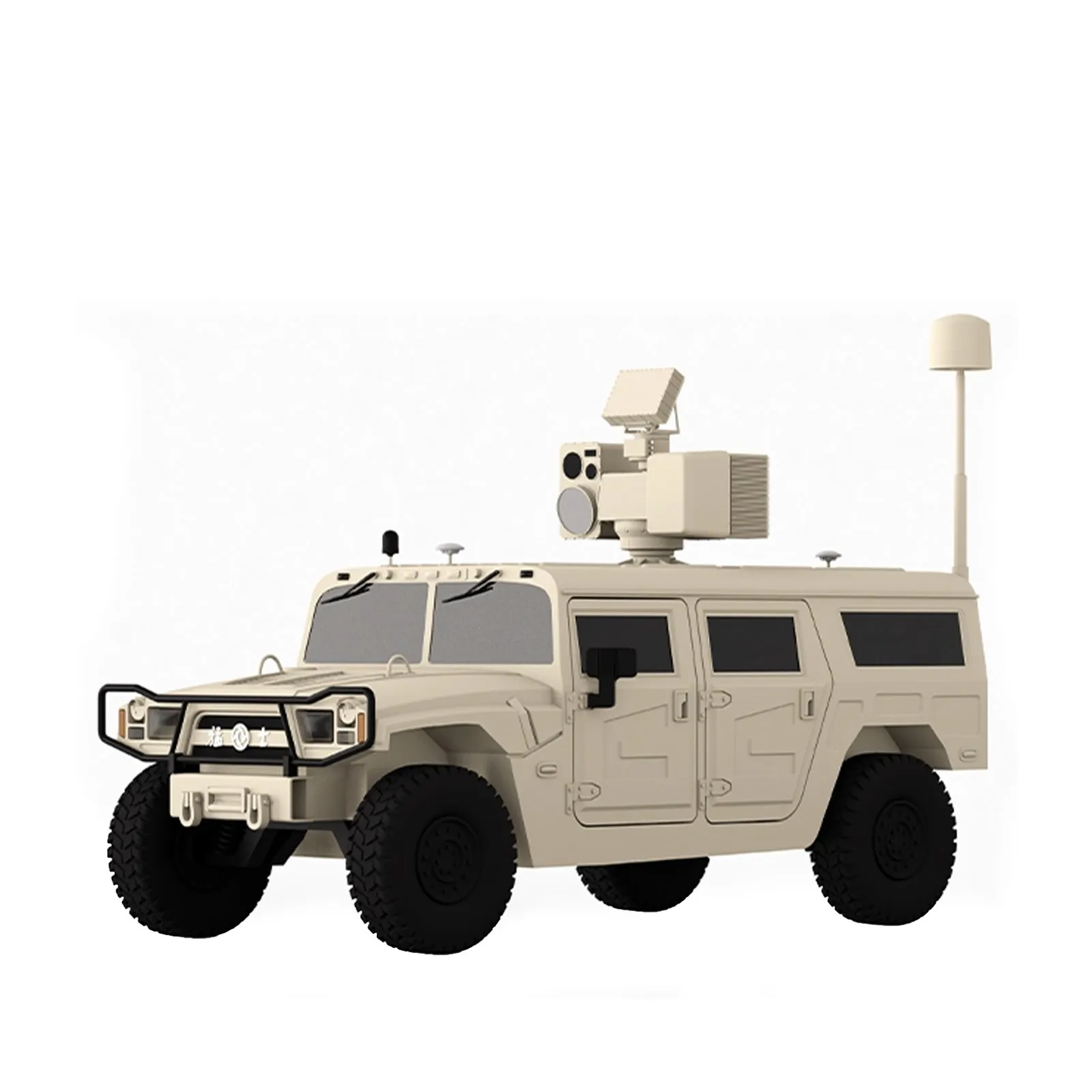

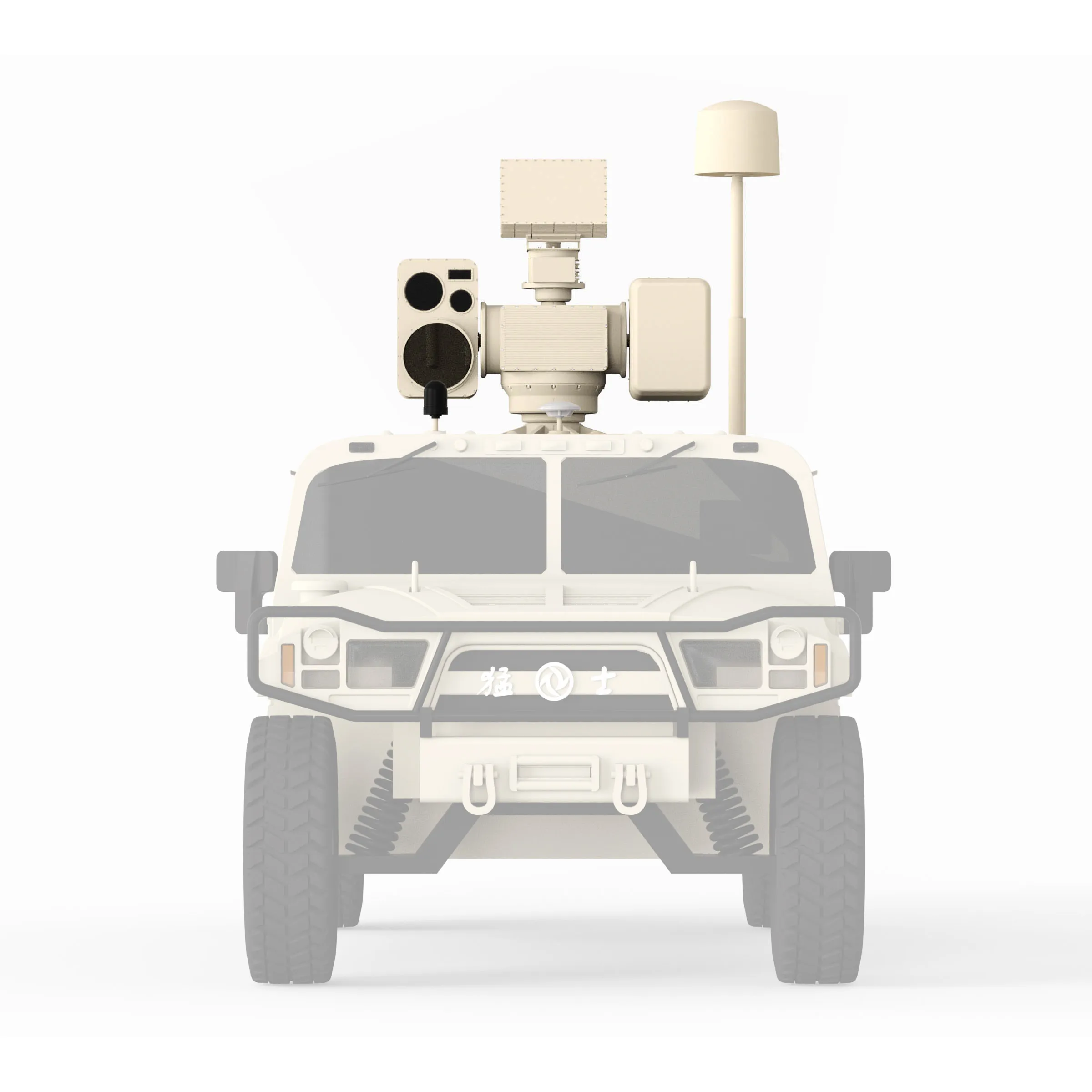

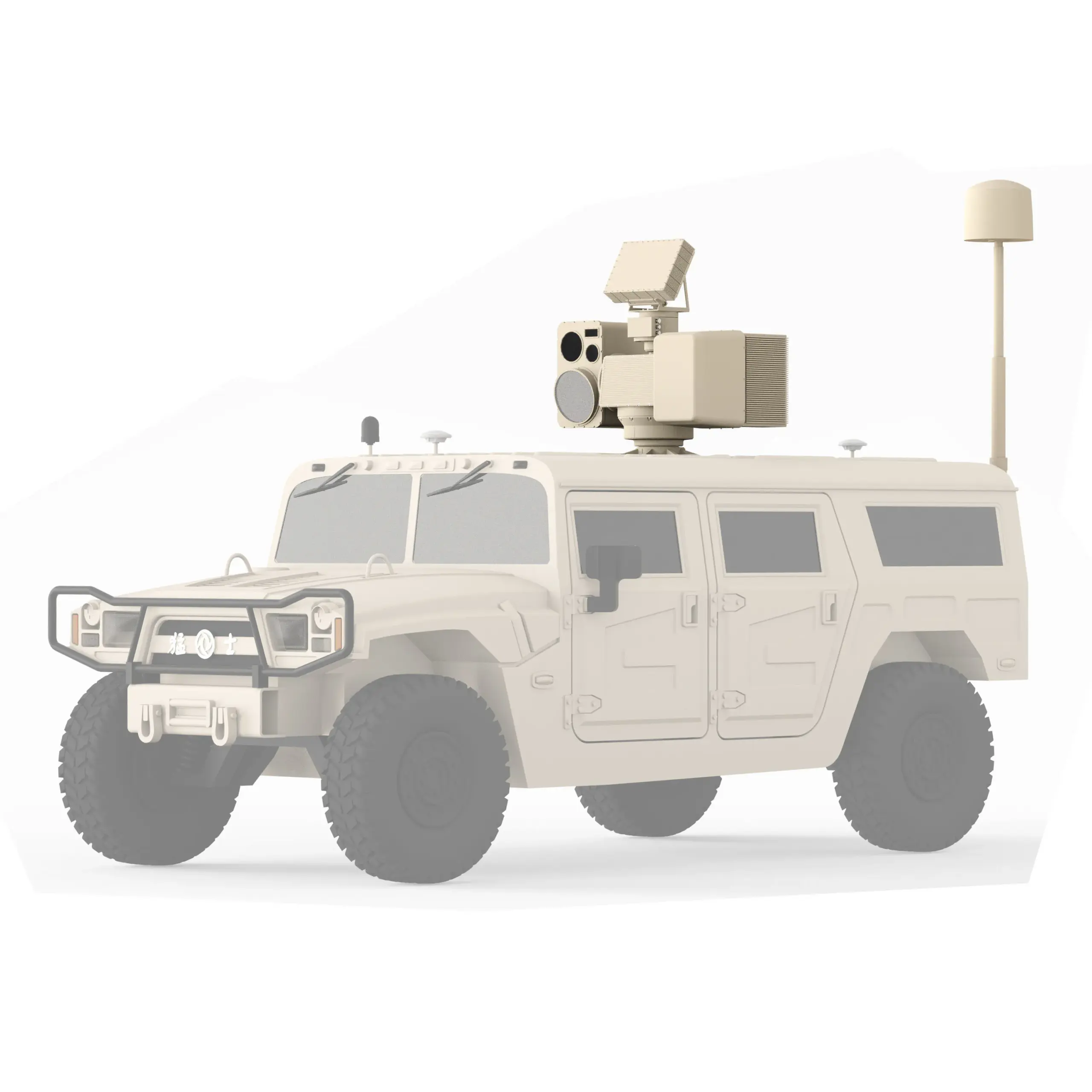

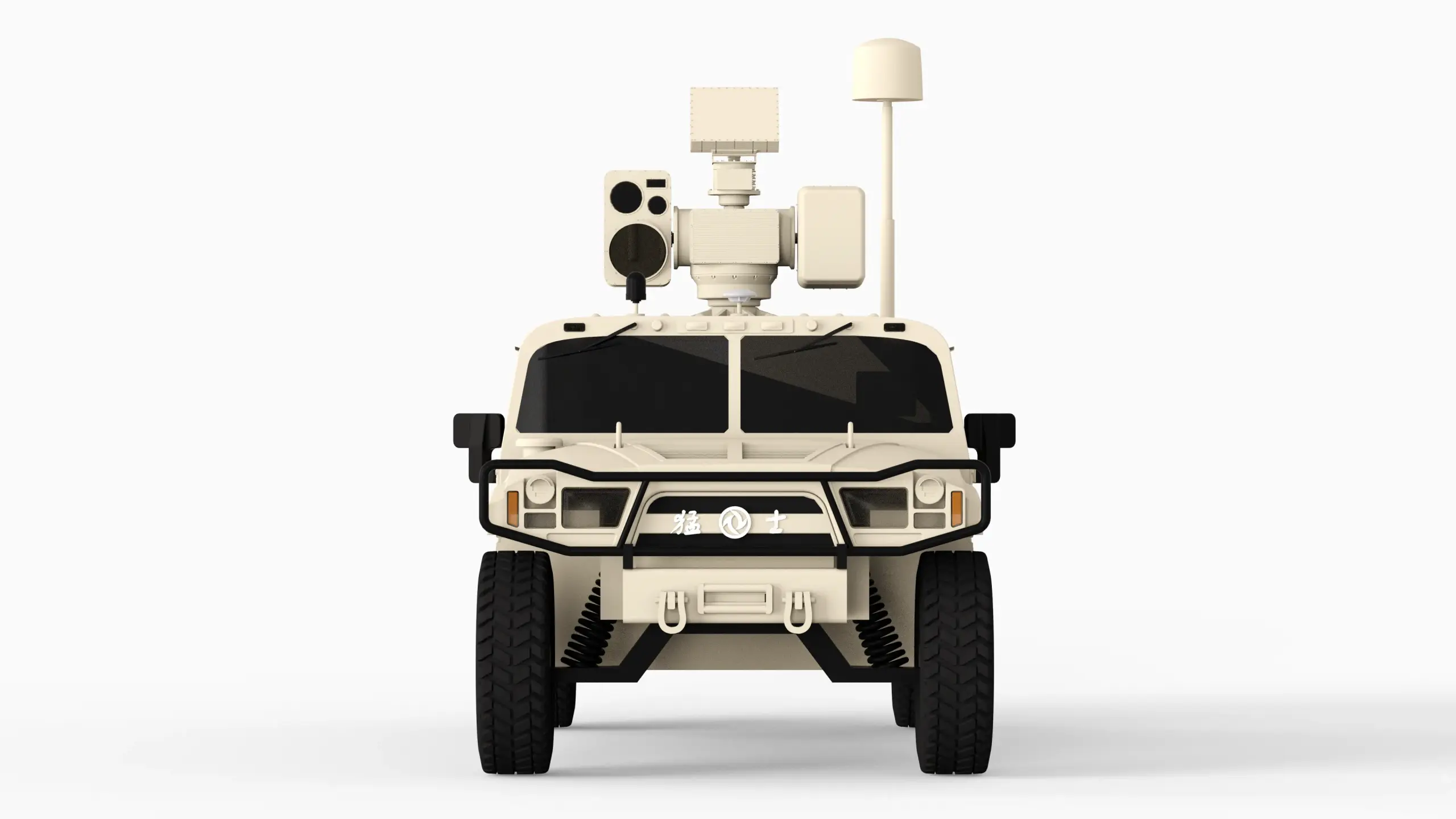

Low-Altitude Defense Vehicle Anti-Drone Counter SystemUAV Neutralization Track Identification
The product represents our company’s cutting-edge solution for countering unmanned aerial vehicles (C-UAV). Utilizing the robust DongFeng M-Hero vehicle as its base, it not only excels in diverse and challenging environments but also demonstrates exceptional stability and durability in various combat scenarios.
The system seamlessly integrates multiple subsystems, including UAV detection, communication jamming, navigation spoofing, and laser deterrence. Its sophisticated intelligent control system enables operators to remotely monitor and control the vehicle in real-time, facilitating precise responses to lo-altitude threats.
This versatile product finds applications in government VIP security, large-scale patrolling activities, and military base defense, providing comprehensive and multi-layered security assurance at lo-altitudes.
Key Benefits
Mobile Control
Highly Integrated
Robust & Durable
Intelligent assurance
Super-charged Countermeasure
Multi-environmental Adaptability
Technical Specifications
| UAV Radar Detection |
|
| Detection Range | ≥ 3 km |
| Radar Frequency Bands | X/KU |
| Data Rate | 6 s |
| Blind Zone | ≤ 100m |
| Azimuth Range | 360° |
| Elevation Range | 20° |
| Speed Measurement Range | 0.5 to 100 m/s |
| Distance Accuracy | 10 m |
| Detection Probability | 90 % |
| UAV Detector – Radio Detection | |
| Detection Range | ≥ 5km |
| Supported Frequency Bands | 900MHz, 1.4GHz, 2.4GHz, 5.8GHz |
| Direction Finding Accuracy | 5° |
| UAV Jammer-Communication Jamming | |
| Jamming Range | 5km, adjustable jamming distance (jamming-to-signal ratio ≥ 10:1) |
| Simultaneous Jamming Frequencies | ≥ 4 |
| Maximum Jamming Bandwidth | ≥ 100MHz |
| Navigation Spoofing | |
| Supported Frequency Bands | GPS L1, GLONASS L1, BDS B1 |
| Jamming Frequencies | L1P, L1M, L2P, L2M, L2C, L5 |
| Jamming Power | ≥80W |
| Jamming Modes | Deceptive Jamming, Navigation Suppression |
| Laser Deterrence | |
| Capture and Tracking Range | ≥1.2 km (typical target DJI Phantom 4) |
| Tracking Angle | Azimuth 360°×N |
| Elevation | 0° to +60° |
| Maximum Angular Velocity of Turntable | ≥ 100°/s |
| Guaranteed Precision Angular Velocity | ≥ 20°/s |
| Tracking Accuracy | ≤10μrad |
| Tracking Capability | Automatic capture, tracking, and identification of targets |
| Lens | Thermal Imaging Focal Length: 30-180 mm; Visible Focal Length: 941 mm |
| Range Finder | ≥1.2 km |
| Illumination | ≥1.0 km |
| Denial Range | 800 m |
| Guidance Capture Time | ≤ 5s (external guidance accuracy in azimuth and elevation better than 0.3°) |
| Target Transfer Time | ≤ 8s (time to switch and stabilize tracking for different targets) |
*The data in the anti-drone solution specifications on this page may be subject to change. Please contact your dedicated account manager for the latest product details.
