H1C portable drone detector
Description
Description

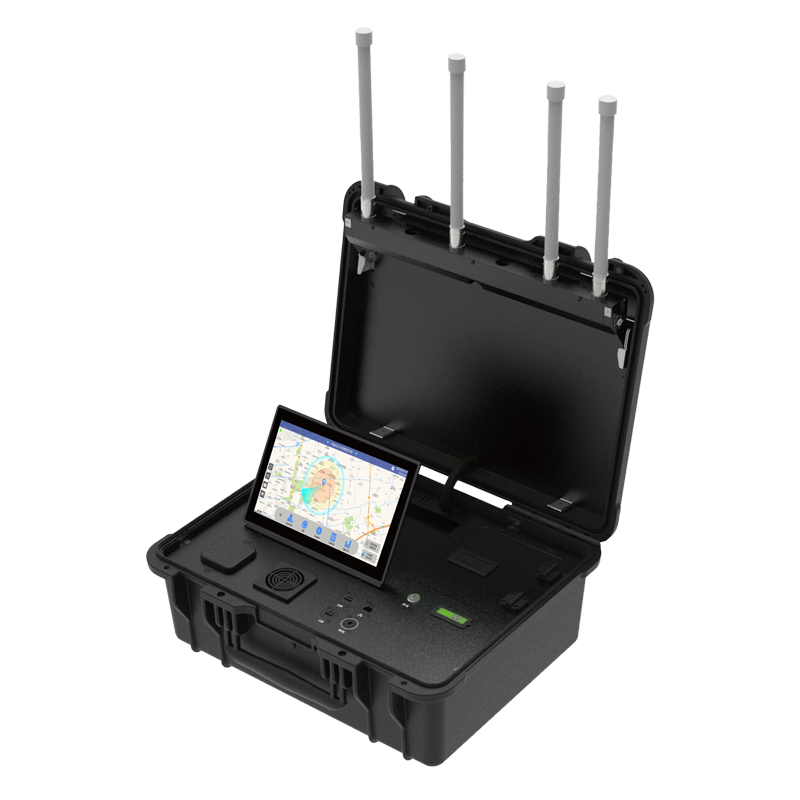

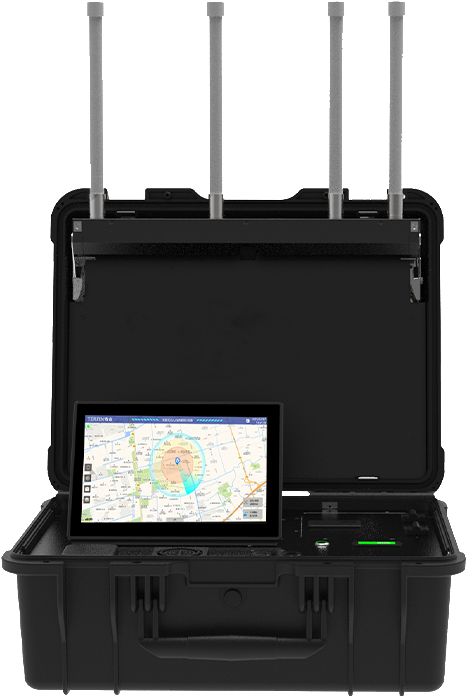

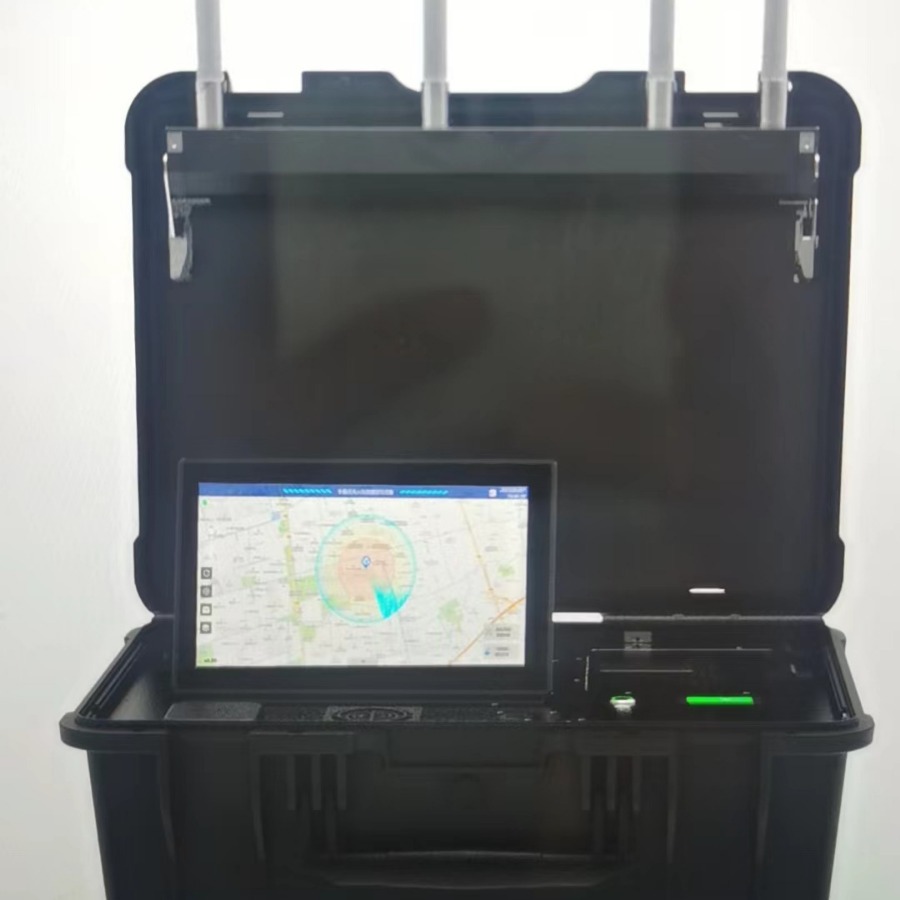

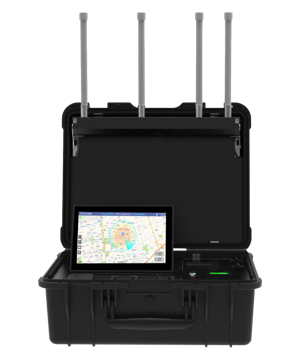

Handheld uav detection and positioning equipment is a portable uav monitoring equipment with suitcase form, hardware and software integrated. Through the deep analysis and data mining of the UAV signal, the single machine can realize the real-time detection of multidimensional information such as the serial number, model, position, speed, height, altitude, takeoff point, return point, flight track and pilot position of the UAV within the detection range.
The equipment features are as follows:
- Flying hand positioning: a single machine can locate and display the flying hand position in real time.
- UAV positioning: it can locate the UAV flight position.
- Unique identification: It can identify the unique serial number of the drone.
- Track tracking: real-time display of multi-target drones.
- Black and white list: cooperative and non-cooperative drones, and the black and white list can be set according to the serial number.
- Multi-unit network: it can be connected to the back-end control platform, and the multi-machine combination covers a large area.

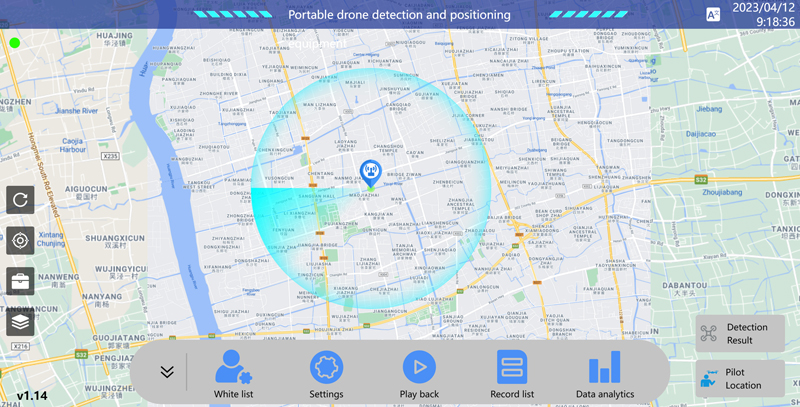

- Touch interaction design: using large screen touch operation, simple to operate, convenient and fast.
- Mobile response: second level deployment, boot ready.
- Mobile portability: a portable suitcase design, small size, easy to carry.
The device can achieve the performance level shown in the following table:
Table 20 Performance indicators of detection and positioning equipment of portable UAV
| Project | Parameter |
| Probable model | DJI, Daotong, Feimi, Dahua, Zhendi, Haoxiang, Udi and other common brand drones and other homemade crossing machine, WiFi machine and other most models on the market |
| Lockable model | DJI, Air, Mini, FPV, Avata series and other types of UAV |
| Work frequency band | 900MHz,1.2GHz,2.4GHz,5.2GHz,5.8GHz |
| Detection radius | 1km-10km (there to be differences according to environment and model) |
| At the same time to detect targets | ≥5 sorties (simultaneously) |
| The trajectory is shown | ≥5 |
| azimuth error | ≤1.5°（RMS） |
| positional error | ≤10m |
| size | L*W*H：520mm*415mm*224mm |
| weight | ≤18kg |
| display screen | 10.1-inch, 1080P (1920 * 1200) |
| duration of flight | About 4 hours (replaceable battery and external power supply) |
| working temperature | -20℃~65℃ |
| levels of protection | IP65 (box closed) |
