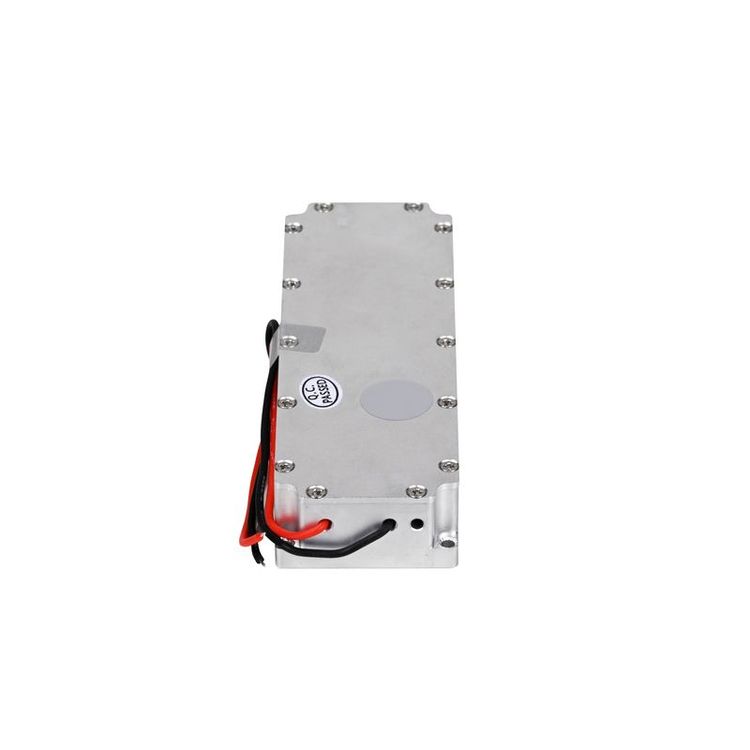

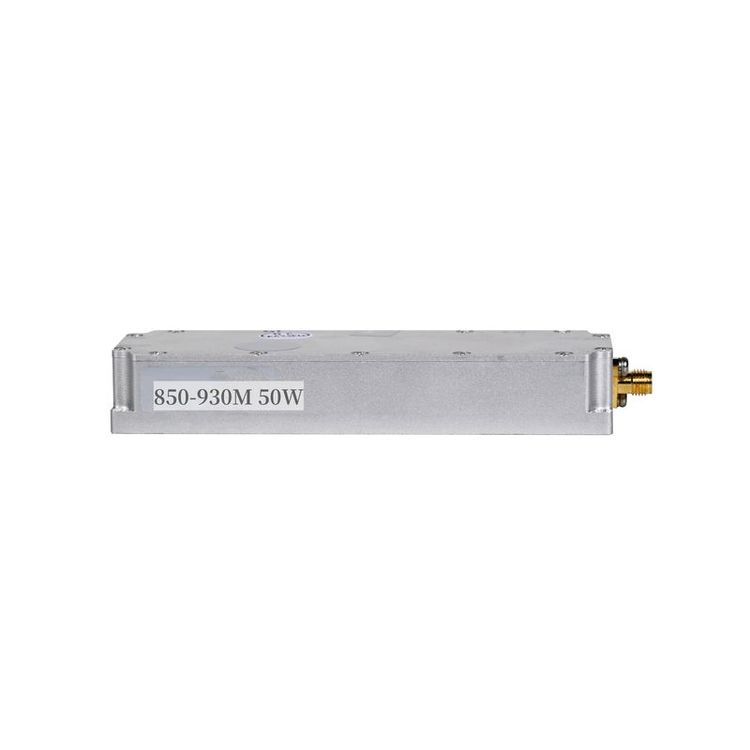

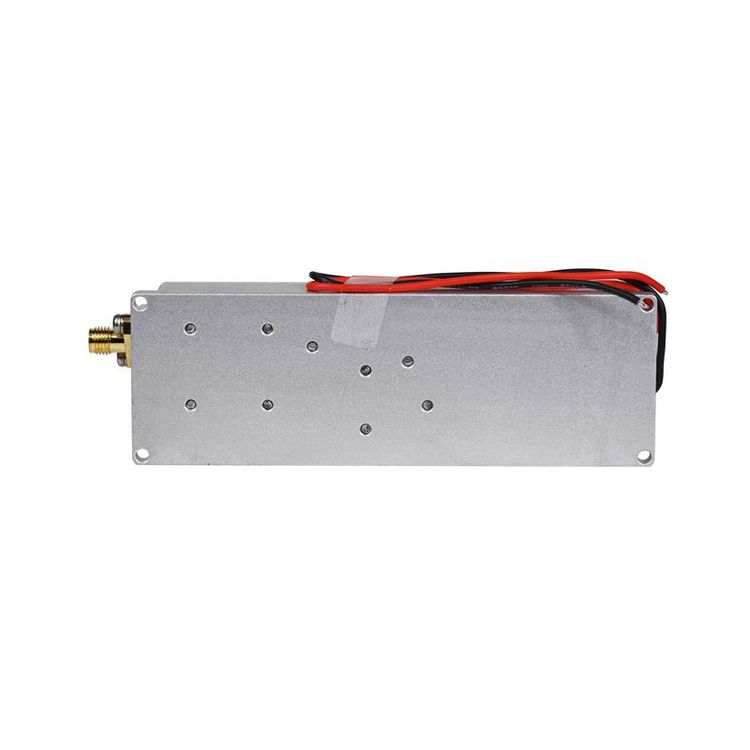

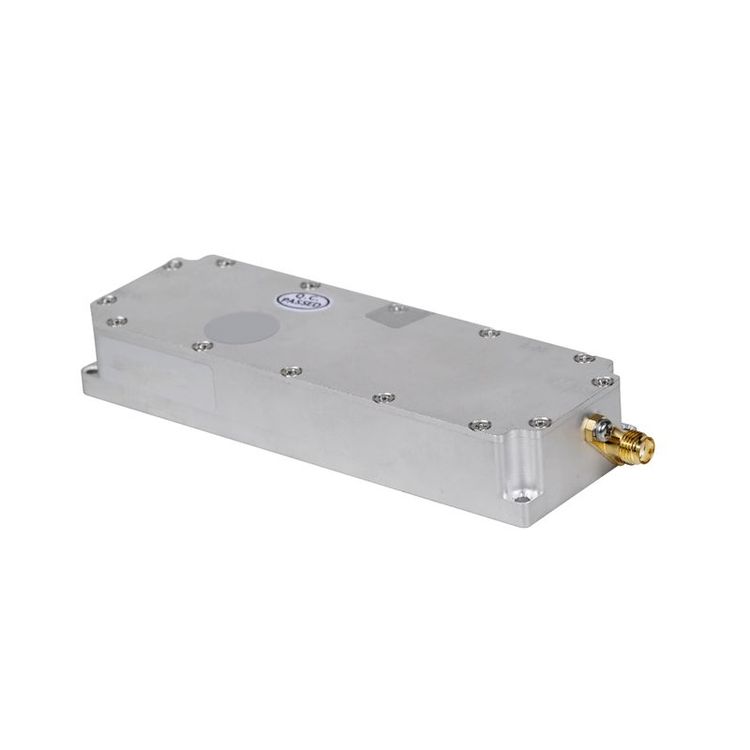

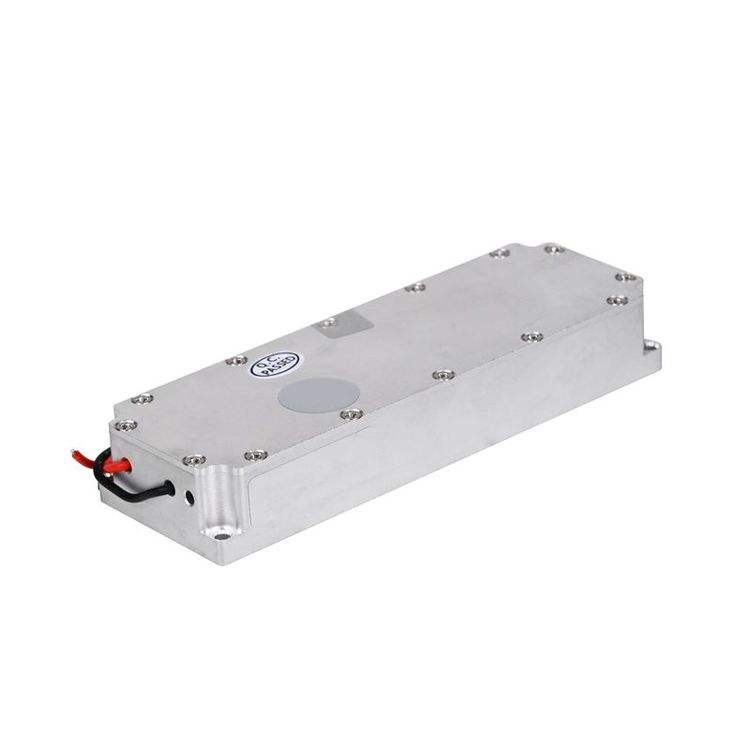

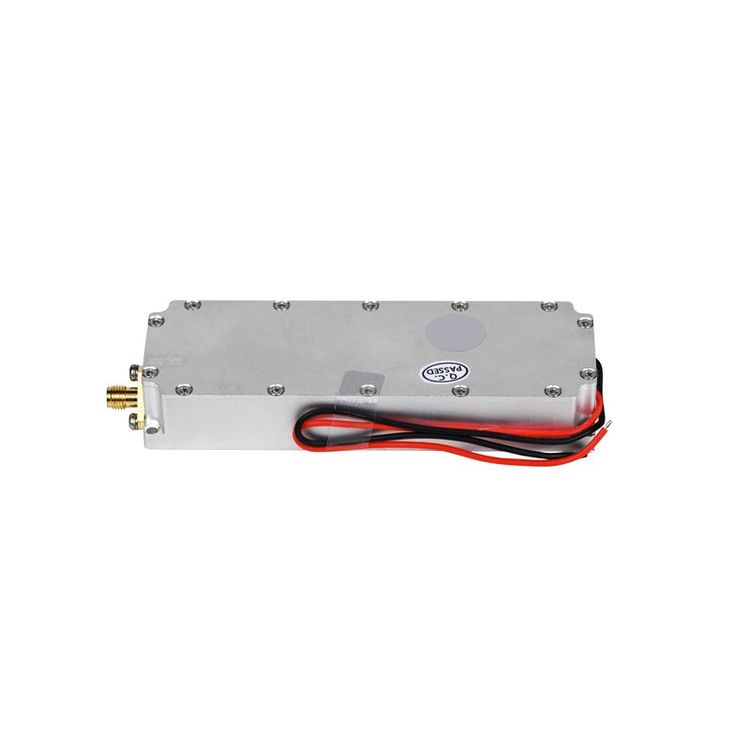

UAV Countermeasure Module 860-930MHz -50/45G1
Key Benefits
- Wideband Coverage
- Precision Interception
- Lightweight & Portable
- Superior Battery Endurance
Description
Description
UAV Countermeasure Module 860-930MHz -50/45G1
Our power amplifier module stands out as a top-tier component tailored to emit jamming signals specifically targeted at unmanned aerial vehicles (UAVs). Crafted with precision and employing state-of-the-art technology, it guarantees unwavering power amplification, delivering consistent performance across a variety of operational settings.
We provide power amplifiers designed for a wide spectrum of frequency bands, including but not limited to 433MHz, 900MHz, 1.2GHz, 1.4GHz, 1.5GHz, 2.4GHz, 5.2GHz, and 5.8GHz. For further information and specifications, please don’t hesitate to reach out to us.
- Compact Design
- Reliable Performance
- Wide Operating Frequency Range
- Efficient and Stable Power Amplification
Technical Specifications
| Item name | Technical parameters |
| Working frequency | 860-930MHz |
| Saturated output power | 43±1dBm |
| Gain | 45±2dB |
| In-band fluctuation | ≤2.0dB |
|
Out-of-band spurious |
9kHz～1GHz：≤-36dBm/30kHz
1GHz～12.75GHz：≤-30dBm/30KHz |
| Input VSWR | ≤1.5 |
| Gain temperature stability | ≤±1.5dB |
| Working voltage | DC+28V |
| Working current | ≤1.5A |

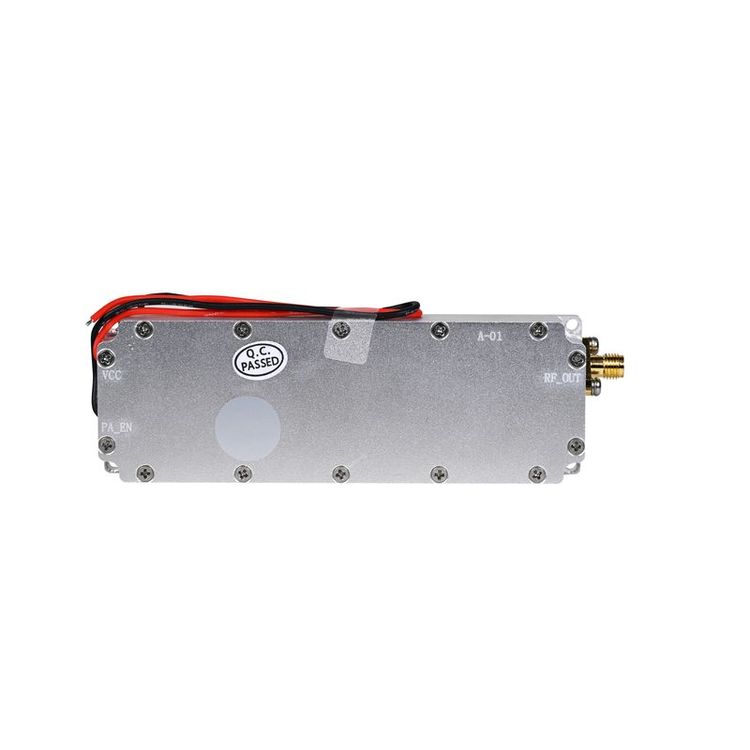

| Power supply monitoring interface | Power supply:  power line
Red: power positive, black: power negative, white: power amplifier enabled |

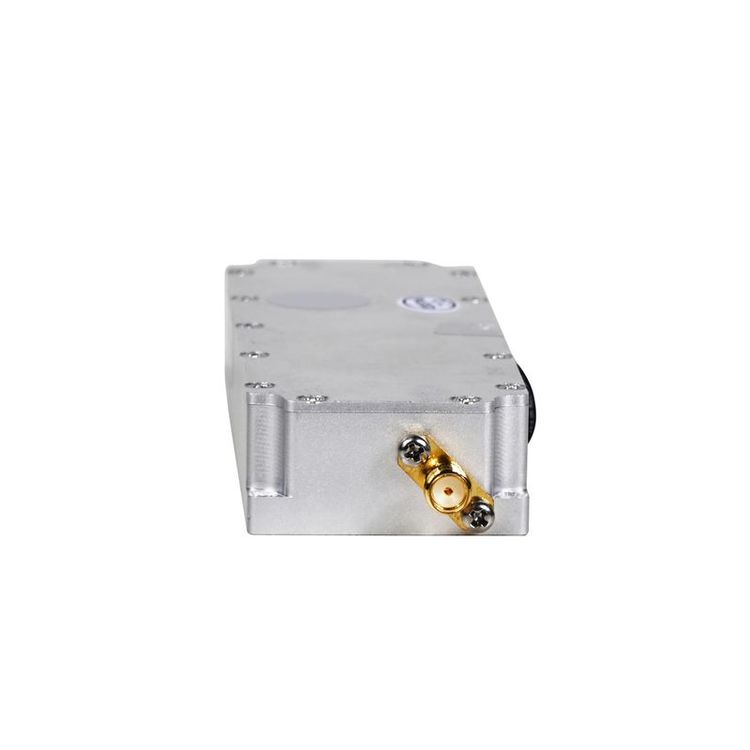

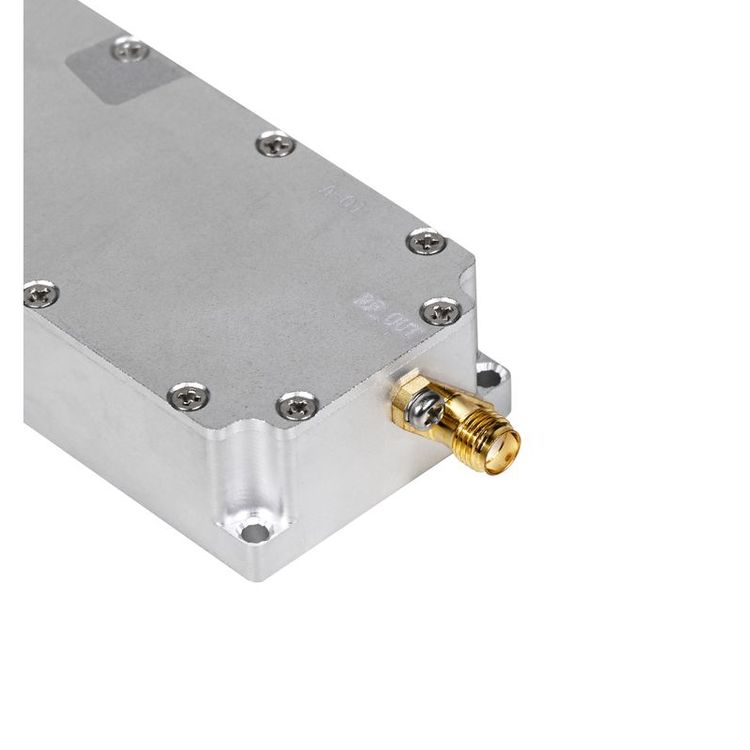

| Output RF port | SMA |
| Dimensions | 117.1×25.6×16mm |
| Working temperature | -20～+85℃ |
Â
Applications
Security & Counter-terrorism in the Oil & Petrochemical Industry
Security & Counter-terrorism in the Power Industry
Government & Security Agency
Civil Aviation Airport & Logistics Base
Large-Scale Event & Sport Competition
Urban No-Fly Zone Airspace Security
Business & Personal Privacy Protection
