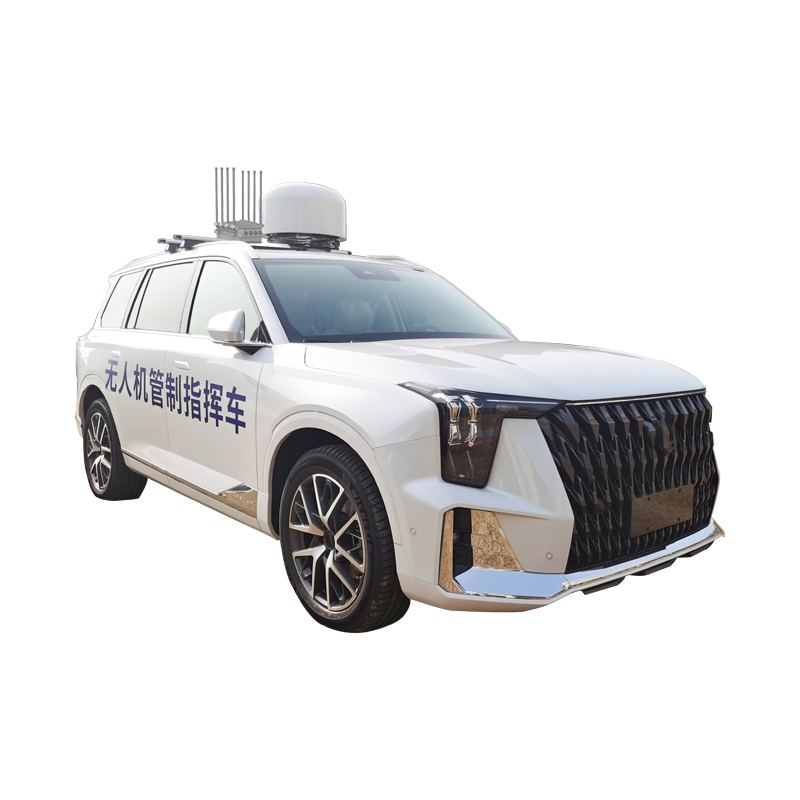

Vehicle-Mounted Anti Drone System
The GNSS spoofer represents a significant advancement in UAV countermeasure technology, offering a fixed-site solution for enhancing low-altitude security defense. Despite its fixed installation, the device remains highly versatile and adaptable, allowing for easy deployment and flexible disassembly when needed. This feature ensures seamless integration into various security infrastructures, providing users with a reliable and efficient solution for protecting critical assets and infrastructure in low-altitude environments.
Key Benefits
Area Denial
Directional Diversion
24/7 Surveillance
Full Coverage
Description
Description
Vehicle-mounted UAV detection and control integrated equipment
The vehicle-mounted anti drone system integrates uav detection, early warning, identification, direction finding, positioning, interference disposal and other functions.
It adopts trunk type integrated appearance design, and has the characteristics of high concealment and strong anti-interference ability.
Its vehicular mobile operation characteristics can quickly reach the mission area or carry out low-altitude security operations on the controlled air invasion target in the march.
Nowadays, Vehicle-mounted anti drone system is widely used in public security, armed police, major event security, public security patrol, political leaders accompanying protection and other low-altitude security scenarios.
Integrated detection and control equipment of on-vehicle uav
The system has the following functional features:
- Direction detection: multiple targets (> 3 sorties).
- Inspection and strike integration: detection and countermeasure linkage, can automatically identify and counter the invasion target.
- All detection models: covering 800 + models, including common models such as DJI Daotong and self-made machines, WiFi machines, crossing machines and other models.
- Target positioning: real-time positioning of uav and pilot position (some common uav models), multi-equipment (3) networking supports TDOA.
- RID monitoring: with the RID monitoring function, support for a variety of standards.
- Black and white list: it can effectively distinguish between cooperation and non-cooperation goals.
- FPV countermeasures: with 7 frequency band countermeasures capability, can effectively counter part of the crossing machine target;
- Mobile operation: dynamic detection and counter-production industry mobile speed of 80 km/h.
- Strong adaptability: adapt to different types of vehicles, light modification can be completed for erection and installation.
| project | parameter |
| work pattern | Passive detection and positioning |
| The object of action | UAV map transmission, flight control link |
| Work frequency band | 100MHz~6GHz |
| Detection radius | 2km~5km (depending on the environment and model) |
| Direction measurement accuracy | 5°~10° |
| positional error | ≤10m |
| Positioning radius | 1~3km (there to be differences according to environment and model) |
| working temperature | -40~60℃ |
| levels of protection | IP43 |
Anti drone counter unit:
| project | parameter |
| work pattern | Radio interference suppression |
| The object of action | Flight control link, navigation signal |
| Countermeasure mode | Directional / omnidirectional mode |
| Work frequency band | 433MHz,900M Hz,1.5GHz,2.4GHz,5.2GHz,5.5GHz,5.8GHz |
| Countermeasure distance | 1km-3km (vary according to environment and model) |
