Fixed Drone Detection & Location Device

The GNSS spoofer represents a significant advancement in UAV countermeasure technology, offering a fixed-site solution for enhancing low-altitude security defense. Despite its fixed installation, the device remains highly versatile and adaptable, allowing for easy deployment and flexible disassembly when needed. This feature ensures seamless integration into various security infrastructures, providing users with a reliable and efficient solution for protecting critical assets and infrastructure in low-altitude environments.

Key Benefits
Area Denial
Directional Diversion
24/7 Surveillance
Full Coverage

Description

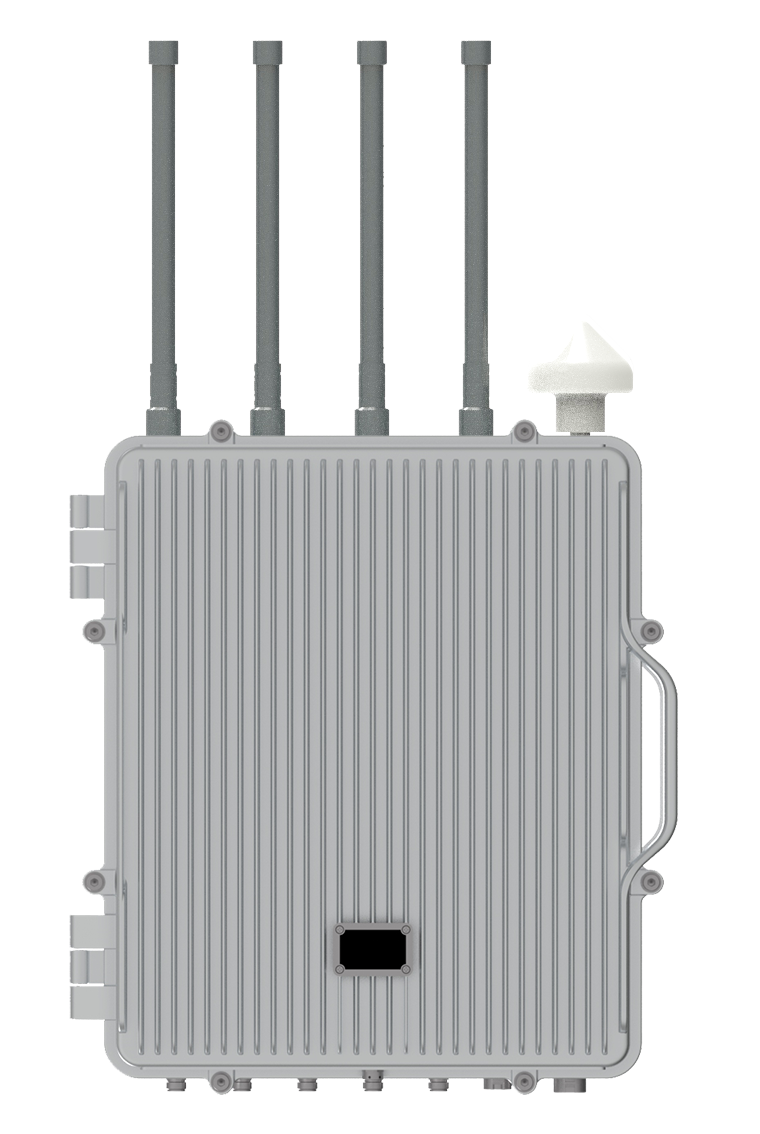

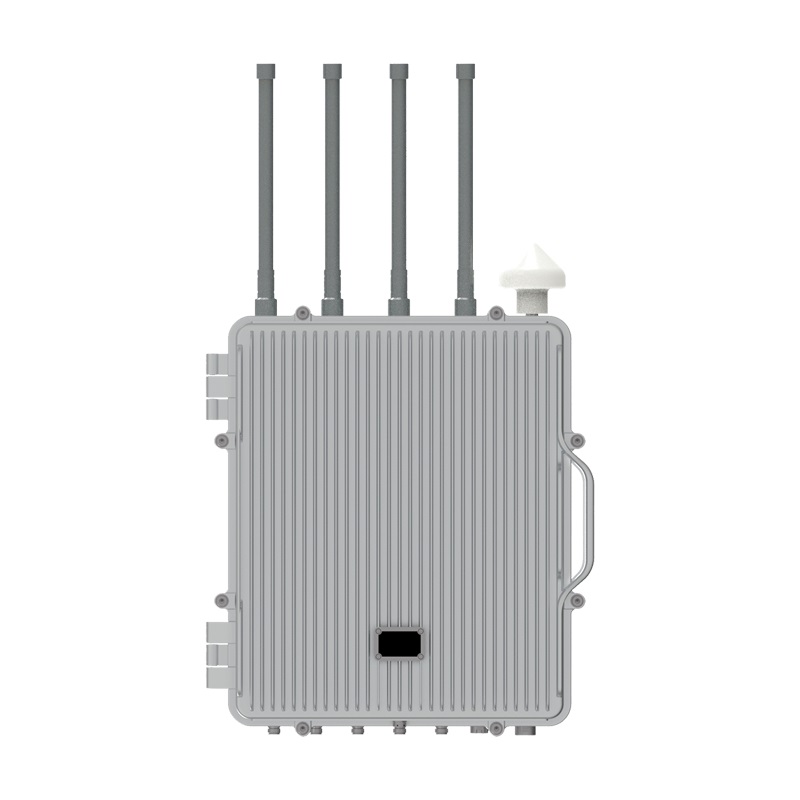

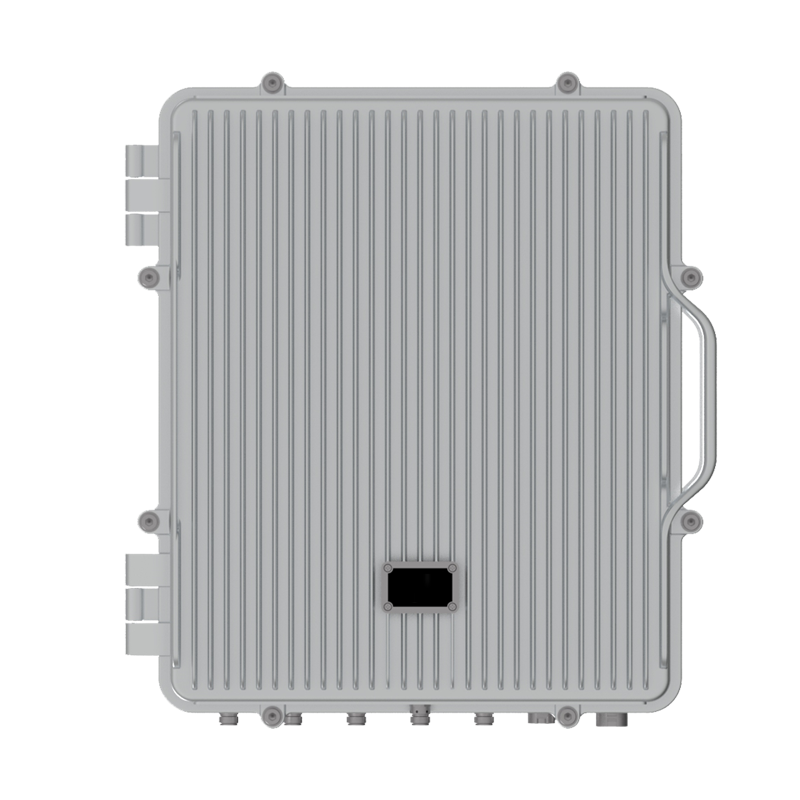

Fixed Drone Detection & Location

This UAV detection device is a fixed uav detection and positioning equipment. Through the depth analysis and data mining of the uav signal, the real-time detection of multidimensional information such as the serial number, model, position and pilot position of the UAV within the detection range is realized. It can work for single or multiple devices, flexible deployment, meet the prevention and control needs of different scenarios, and can be deployed with countermeasures and lure equipment.

Technical Specifications

Project	Parameter
Work pattern	Passive detection and positioning
The object of action	UAV map transmission, flight control link
Work frequency band	900MHz,1.2GHz,2.4GHz,5.2GHz,5.8GHz
Detect the positioning radius	1~10km (it will vary according to the environment and model)
Number of probed targets	≥5 sorties (simultaneously)
The acking shows the trajectory of the drone	≥5 (simultaneously)
Positional error	≤10m
Size	L513mmW462mmH187mm
Weight	≤25kg
Working temperature	-20~65℃
Levels of protection	IP66

UAV Detection device detail functions:

1）UAV monitoring: can obtain the serial number, model, position (longitude and latitude, azimuth), speed, height, take-off point, return point, navigation track, remote control position (longitude and latitude, azimuth) and other information of the UAV within the monitoring range;
2）All identification models: can identify DJI, Daotong, Haoxiang and other common models as well as self-made machine, WiFi machine, crossing machine and other models;
3）Locable models: DJI Royal Mavic, Air, Mini, FPV, Avata and other UAV models；
4）Target positioning: real-time positioning of the UAV and pilots (some common uav models);
5）Unique identification: can identify the unique serial number of the UAV;
6）Black and white list: can distinguish between cooperative and non-cooperative UAV, to detect the cooperative UAV, the equipment does not alarm, and can mark the trust of the cooperative UAV;
7）Multi-unit network: the equipment can be connected to the back-end control platform, and the multi-unit network can meet the coverage of large areas;
8) Inspection and strike linkage: it can be integrated with countermeasures or navigation decoy equipment to realize the inspection and strike linkage within the prevention and control area.

Application

Sports events

Power sytems

Government Agencies

Petroleum And Petrochemicals

Prison

Airport
